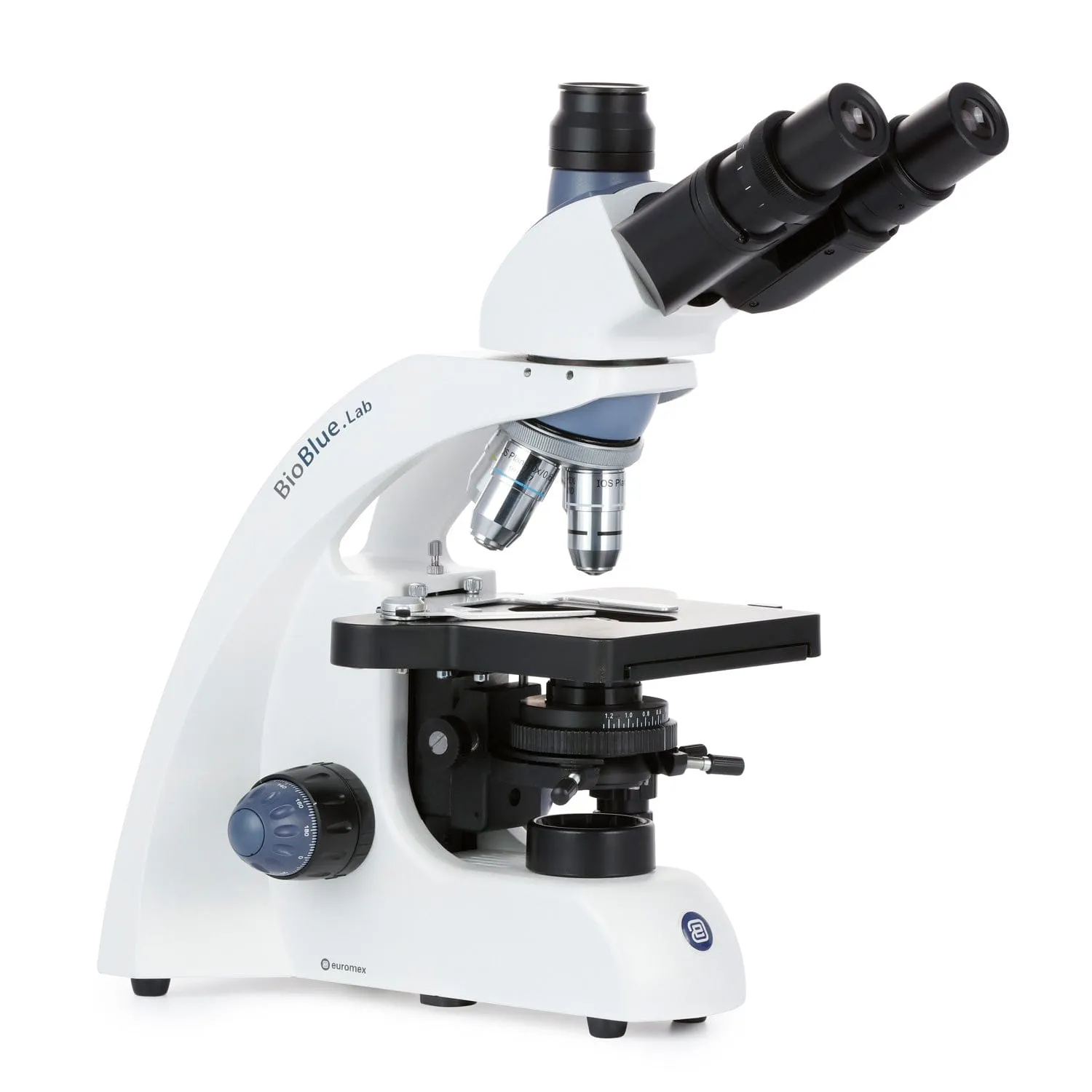

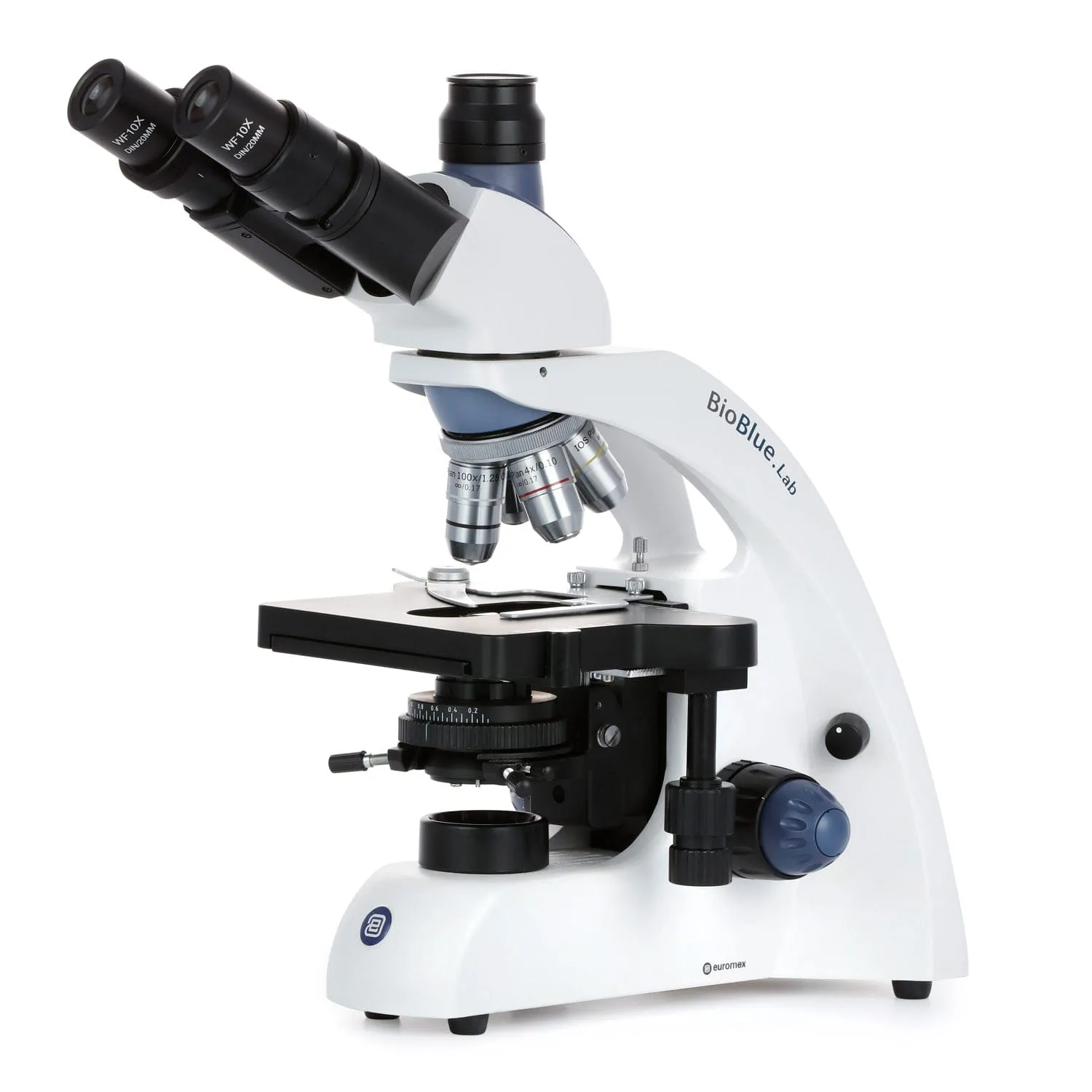

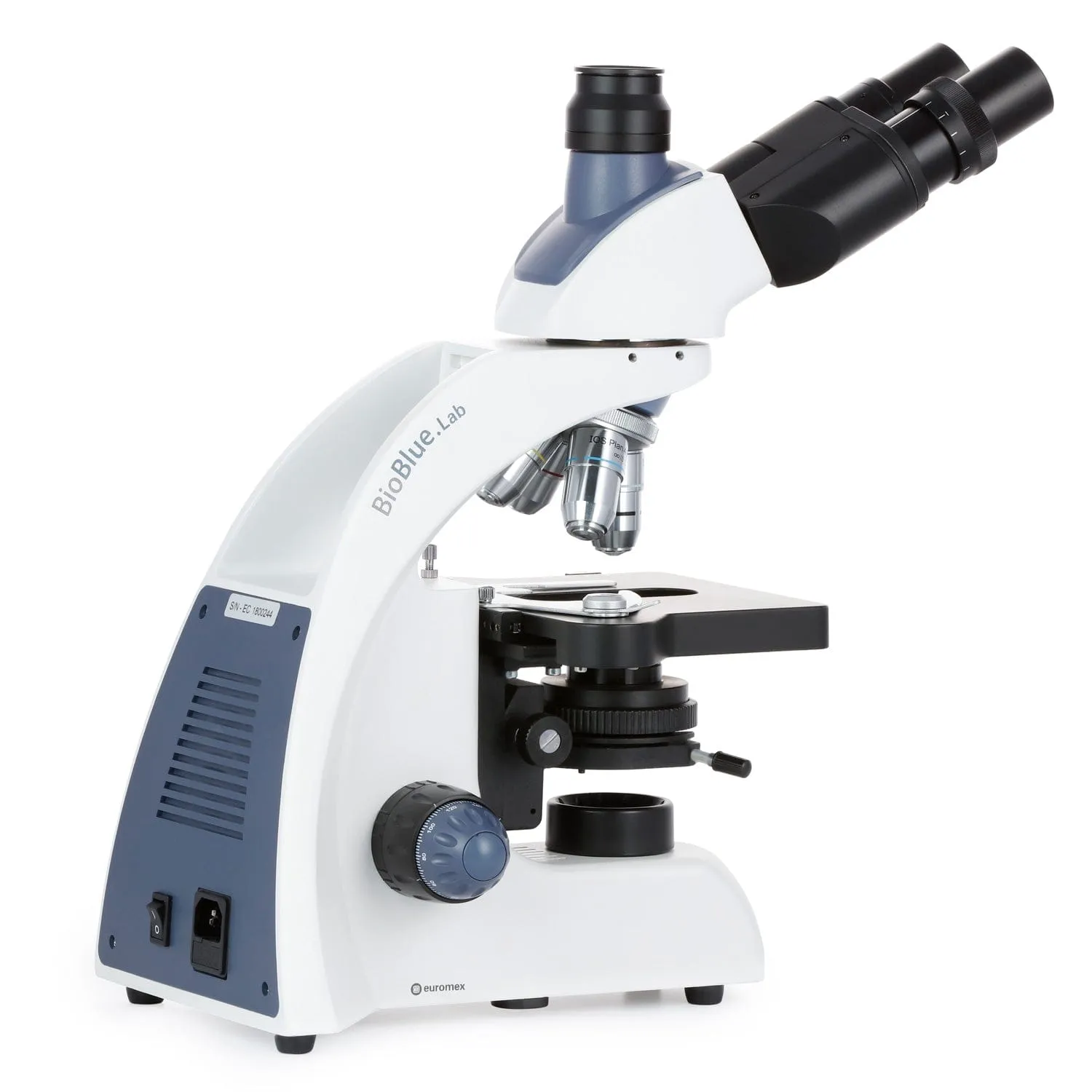

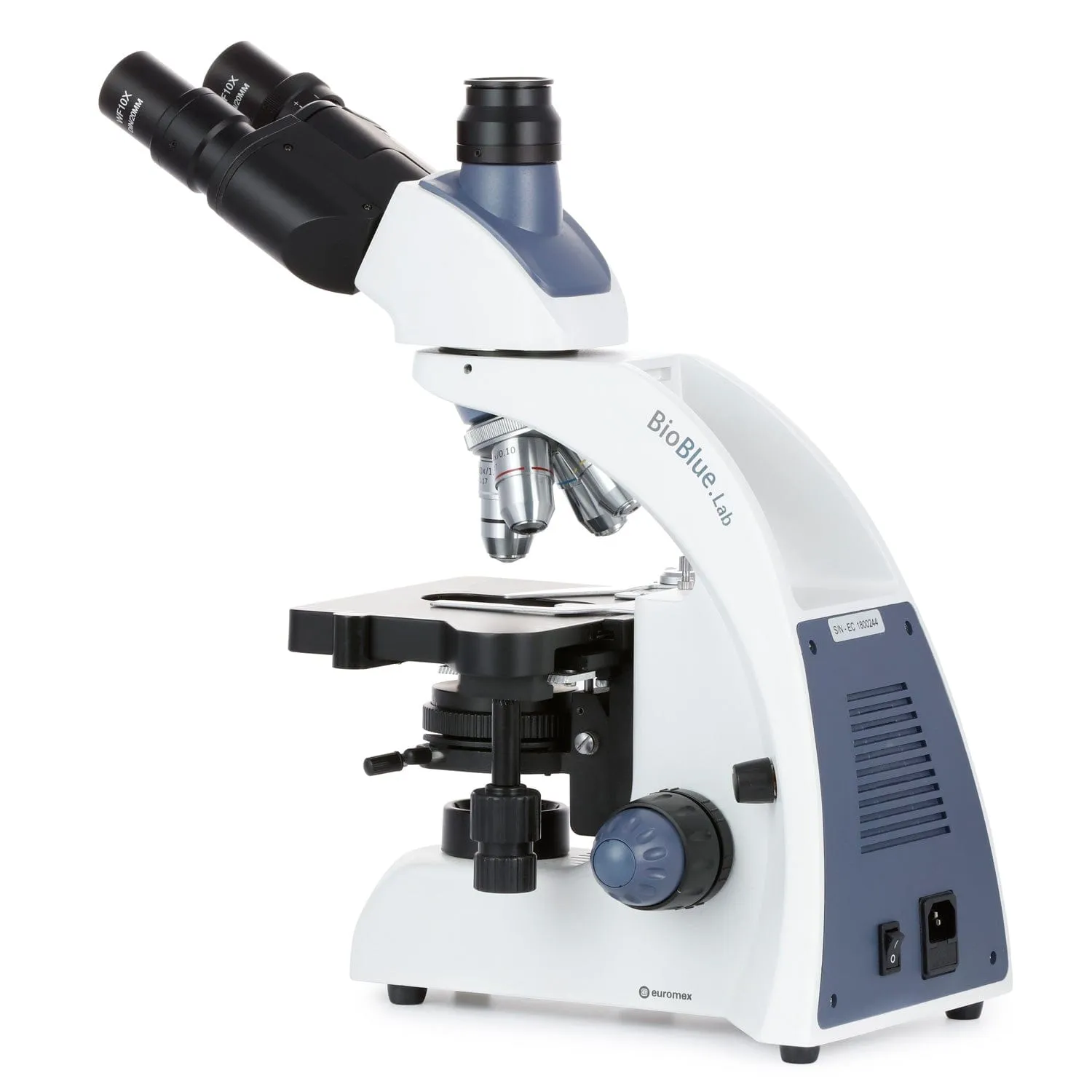

The BlueLine flagship BioBlue.Lab is an instrument that precisely matches the highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highly appreciated in most demanding cytology and histopathology applications.
This BioBlue.Lab microscope model offers great functionality and are equipped with WF10x/20 mm eyepieces and IOS plan 4x/ 10x/ S40x/ S100x objectives. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions.
Features:
Higher-end upright microscope
Trinocular model (trinocular models available)
Revolving reversed, quadruple nosepiece
Finite and infinity optical system
Integrated X-Y mechanical stage
NeoLED illumination
Ergonomic carrying grip
Specifications:
EYEPIECE(S)
Wide field WF 10x/18mm eyepiece(s).
HEAD
Trinocular head, 30º inclined with ø30mm tubes. The interpupillary distance is adjustable between 48 to 75mm. Diopter adjustment /- 5 on left tube.
All heads are 360º rotatable and secured.
NOSEPIECE
Reversed quadruple nosepiece on ball bearings with a slot for the analyzer.
OBJECTIVES
Plan IOS (infinite) objectives
4x/0.10
10x/0.25
S40x/0.65. Objectives with “S” means spring loaded
S100x/1.25. Objectives with “S” means spring loaded
Total magnification 1000X
FOCUSING
Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 microns per graduation, 0.3mm per rotation. The total travel range is approximately 28mm. Supplied with an adjustable rack stop to prevent damage to samples and objectives. The coarse adjustments are equipped with friction control.

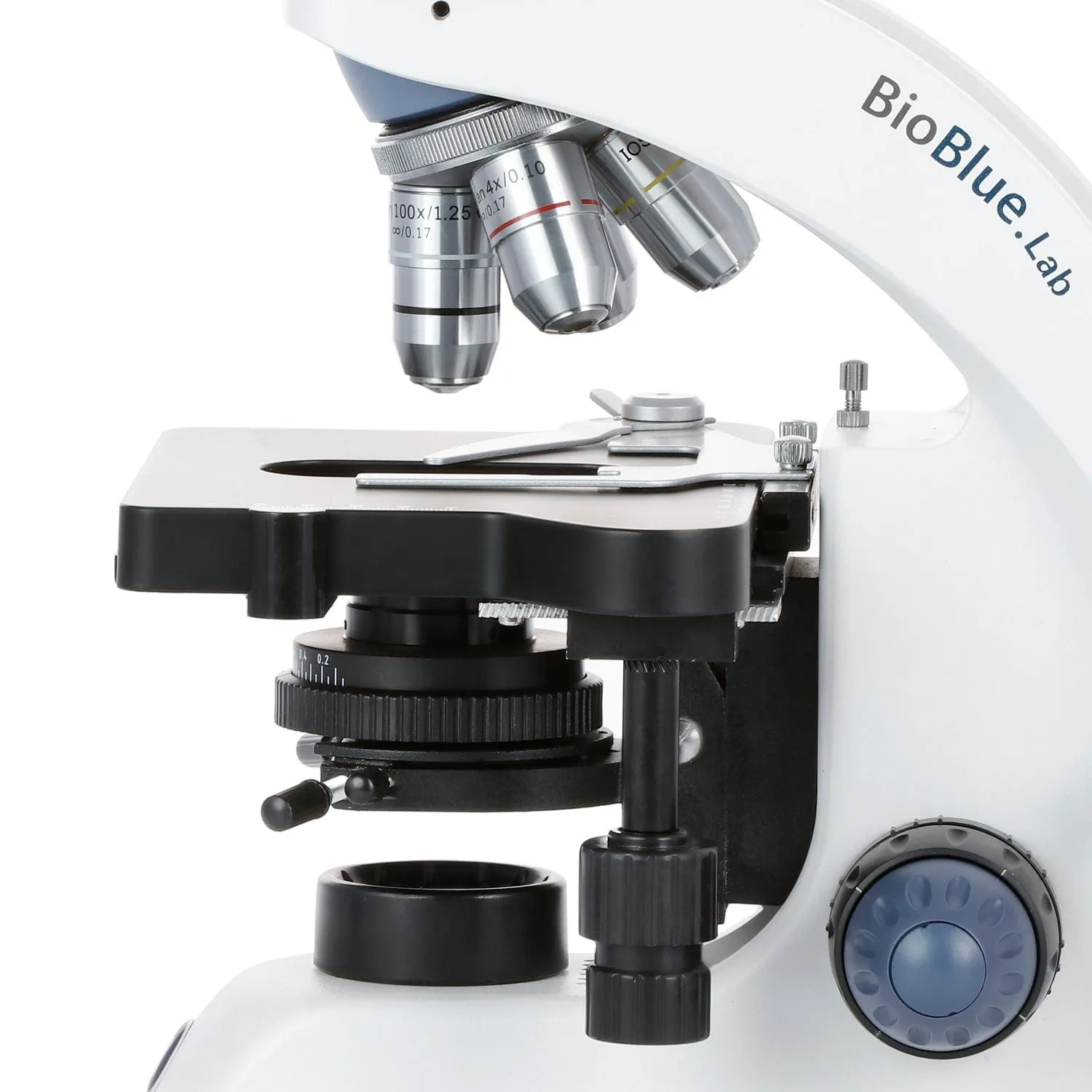

STAGE
Rackless 150x140mm stage with mechanical 75x30mm XY translation stage.
CONDENSER
Height adjustable ABBE condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with a white filter.
NEOLED TRANSMITTED ILLUMINATION
The 3W adjustable NeoLED (Euromex exclusive) transmitted illumination is powered by an internal 100-240V power supply.

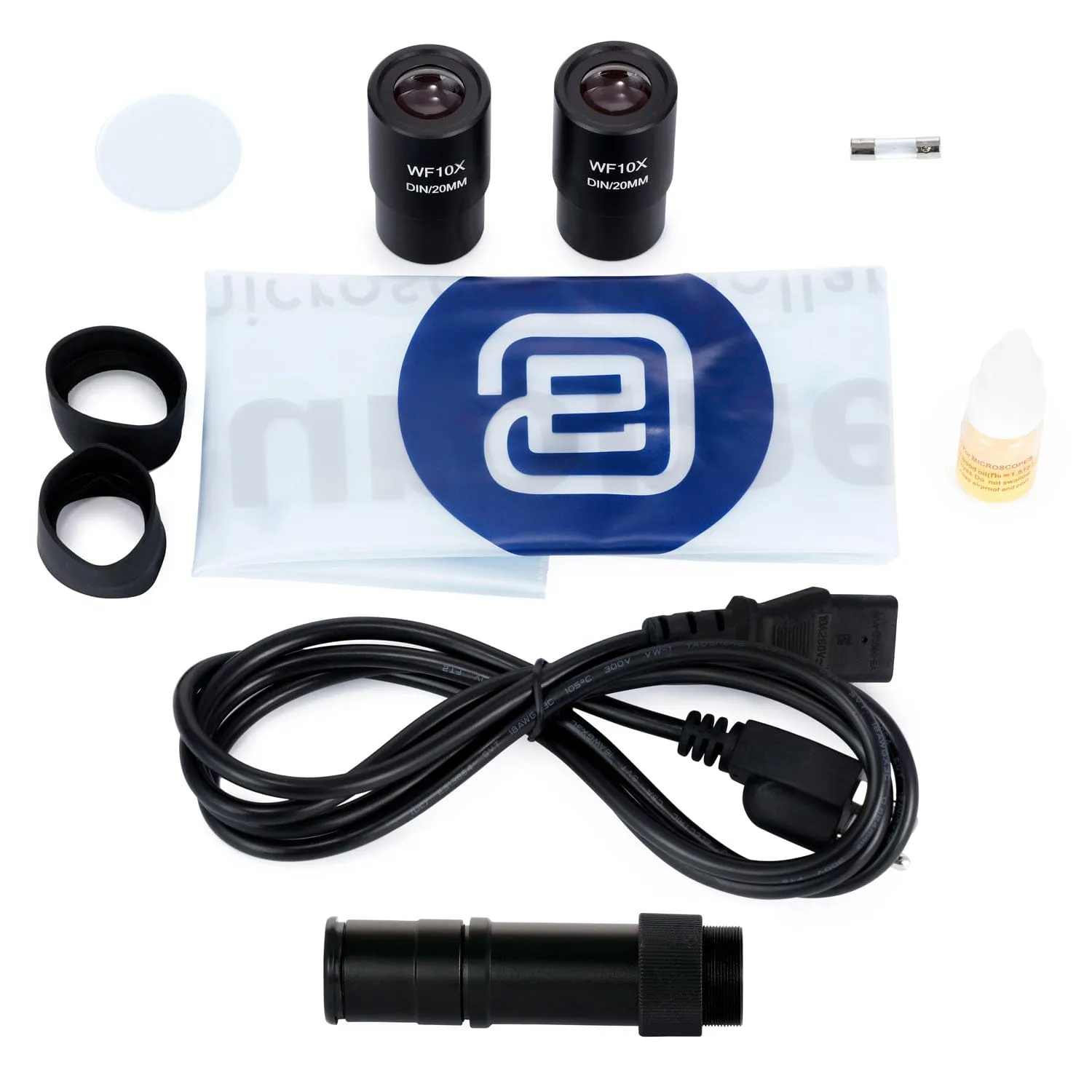

PACKAGE CONTENT
Styrofoam packaging, power cord, dust cover, a spare fuse, blue glass filter, user’s manual, and 5ml immersion oil.
All packed in a polystyrene box.
