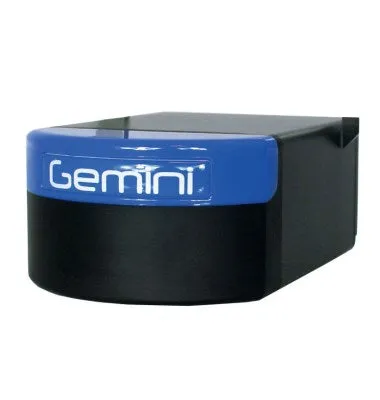

TRITECH GEMINI 720IM image Sonar
Working frequency 720KH/beam 128/depth 300 meters
The Gemini 720im fuses Tritech’s Gemini multibeam technology with Tritech’s Micron technology to create the world’s smallest multibeam imaging sonar.
Having a 90° horizontal field of view and 50m range, with an update rate up to 20Hz, the Gemini 720im brings real-time imaging to places where multibeam was never possible before.
With incredibly compact dimensions the Gemini 720im can be used in applications where size is critical. This makes the Gemini 720im ideally suited for micro ROV/AUVs in addition to applications where space is restricted or weight is critical, including diver helmet and pole mounted applications such as Search and Recovery (SAR) operations.
Benefits
- Lightweight and compact
- 90° horizontal field of view
- Ethernet and serial communications
- Serial Auxiliary port
- Low power
Features
- 20Hz update rate
- 300m depth rated
- Windows & Linux Software Development Kit (SDK)
- CHIRP & CW processing
- Mounting kits supporting 10deg downward tilt
Applications
- Micro ROV/AUV navigation
- Obstacle avoidance
- Diver operations
- Aquaculture monitoring
- Vessel/Pole mount target search
